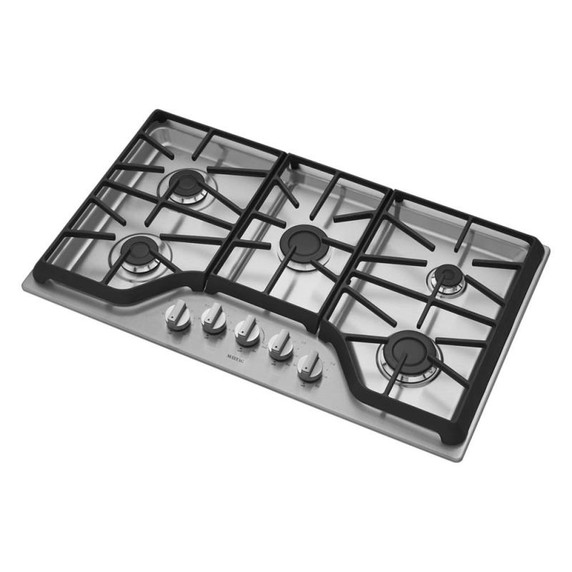

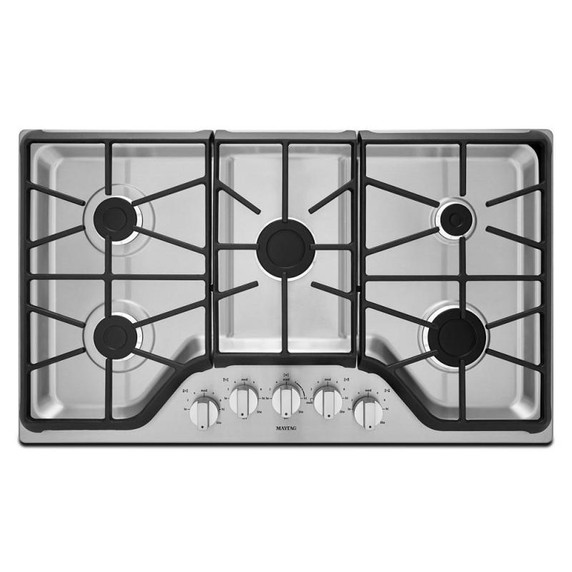

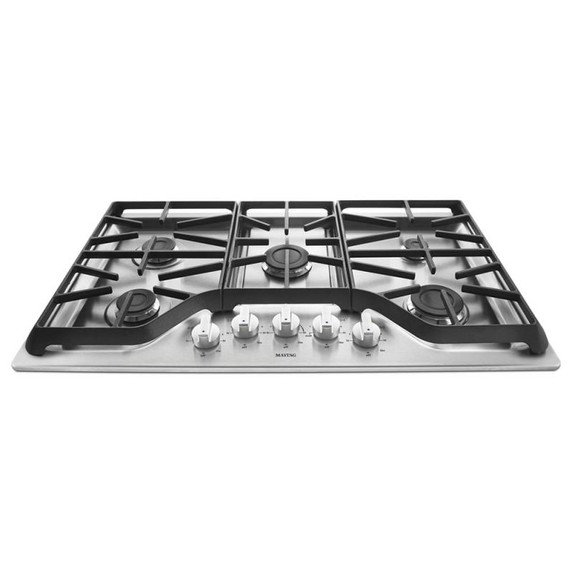

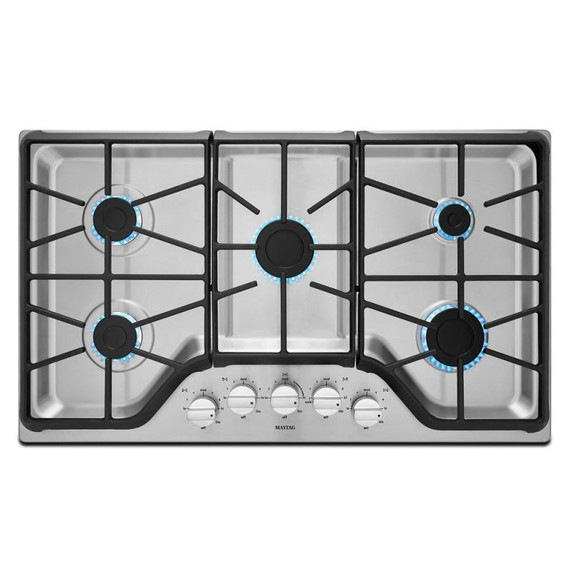

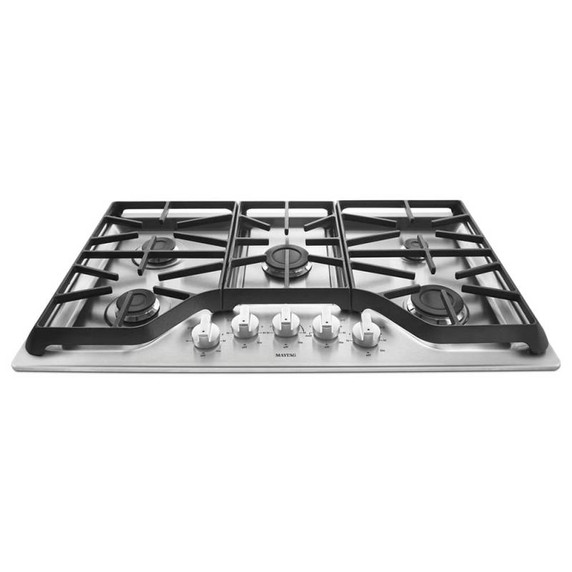

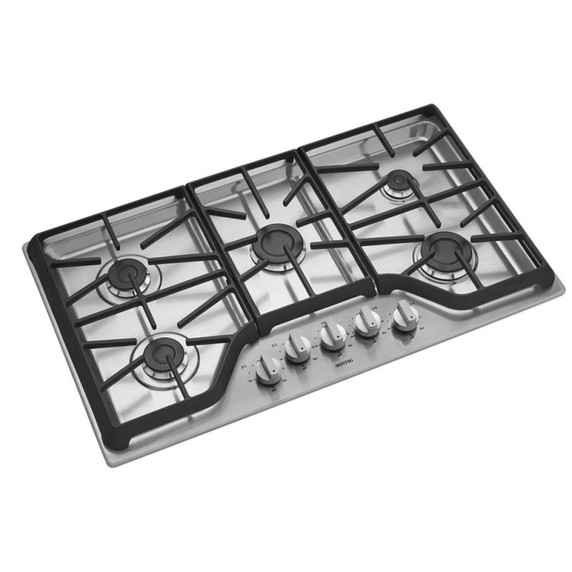

Maytag® 36-inch 5-burner Gas Cooktop with Power™ Burner MGC7536DS
Maytag Dependable Savings Event, August 29 - September 25, 2024. Save $150 when you purchase 2 qualifying Maytag kitchen appliances. Save $300 on 3 or more!
15,000-BTU Power™ BurnerExclusivo quemador que brinda máxima potencia y rapidez de cocinado, para obtener resultados precisos y consistentes en todo tipo de platillos.
Heavy-duty DuraClean™ continuous cast-iron gratesHeavy-duty DuraClean™ continuous cast-iron grates
10-Year Limited Parts Warranty on the Burners and GratesWith a 10-year limited parts warranty on the cooktop burners and cast-iron metal grates, we built these cooktops tough enough to keep cookin' for years.
Designed, Engineered, Assembled in the U.S.A.These cooktops are designed, engineered and assembled in the U.S.A.

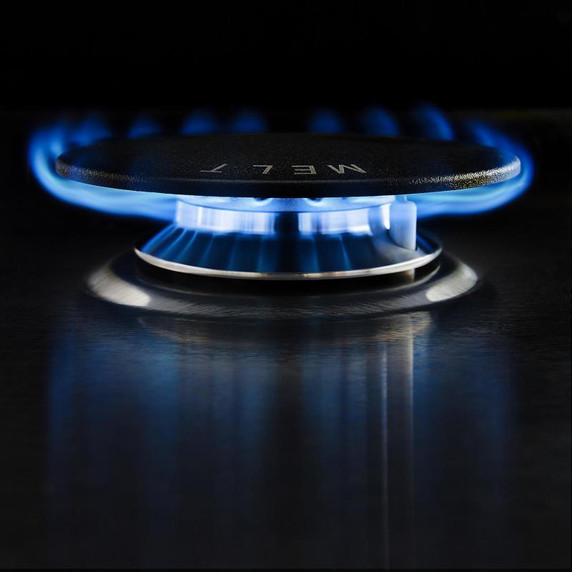

Simmer BurnerThe simmer burner provides 800 to 5,000 BTUs of precise, adjustable heat to give you both a full-power simmer burner and warming setting all in one.

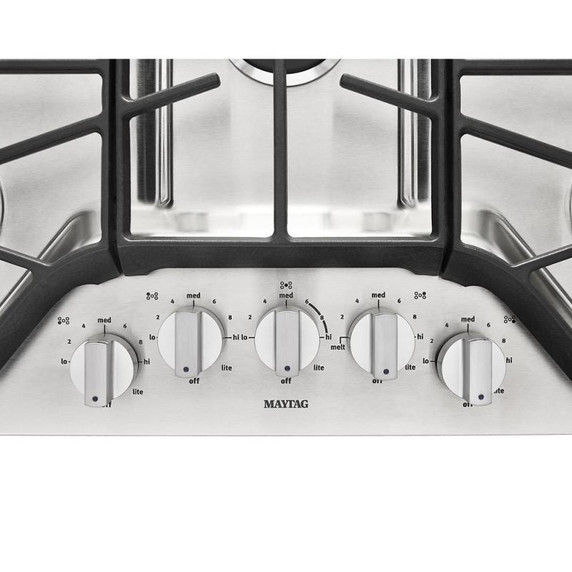

Front ControlsFront controls keep your cooktop knobs close at hand so you can manage your meals without breakin' a sweat.
Specifications
Country Of OriginUSA
Product To Product PairsUVL6036JSS
Extended Service Plan ParentEW05IW2Y, EW05IW4Y, EW05IW1Y
Electrical
Volts120
Hz60
Amps15

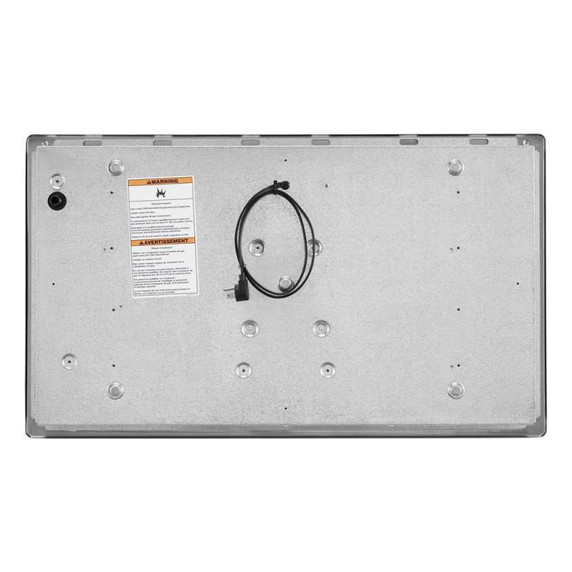

Power Cord IncludedYes
Certifications
ULYes
ADA CompliantYes
Cooktop Details
Cooktop Element StyleSealed Burners
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Center Rear Element Burner TypeSealed Burner
Left Rear Element Burner TypeSealed Burner
Right Front Element Burner Power12000BTU
Right Front Element Burner TypeSealed Burner
Right Rear Element Burner TypeSimmer
Left Front Element Burner Power9100BTU
Left Rear Element Burner Power9100BTU
Right Rear Element Burner Power5000BTU
Center Rear Element Burner Power15000BTU
Features
Hot Surface Indicator LightNo
GriddleN/A
Automatic Pan DetectionNo
Digital DisplayNo
Downdraft VentNo
Installs Over Built In OvenYes
LP ConvertibleYes - Kit Included
Power BoostNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Description
Size In36
Cooktop TypeTraditional
Combinations With OvenMEW9527; MEW9530
Controls
Control TypeManual
Control LocationFront
Knob TypeDishwasher Safe
Configuration and Overview
Fuel TypeGas
Refinements
May CooktopADA Compliant; Flex-Choice™ Simmer Burner; Power™ Burner

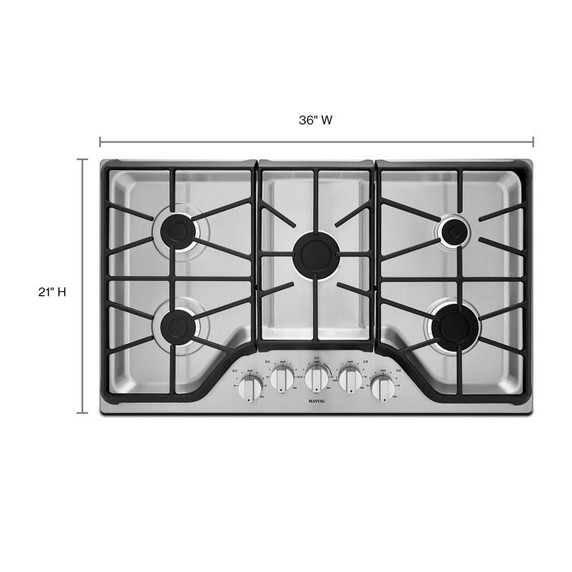

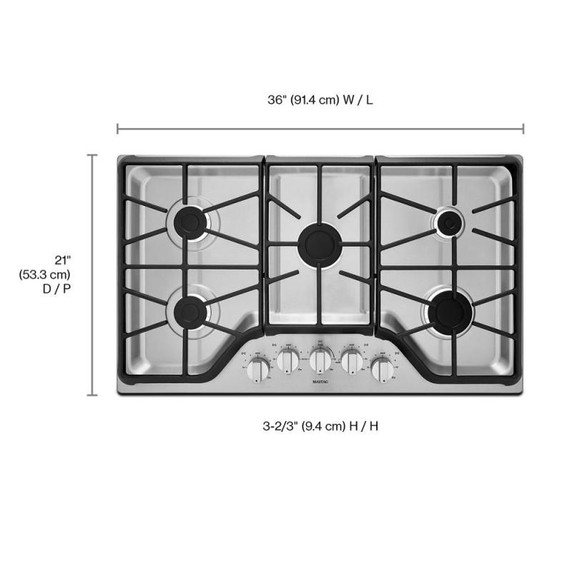

Depth21.0"
Height3.69"
Maximum Height4.0"
Minimum Height3.38"
Net Weight59.6 lbs.
Width36.0"
Cutout Height5.25"
Carton Depth Inch25.0
Carton Height Inch12.04
Carton Width Inch44.41
