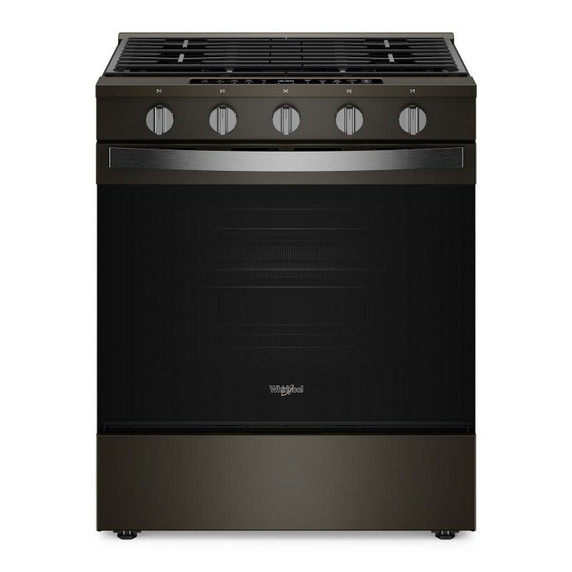

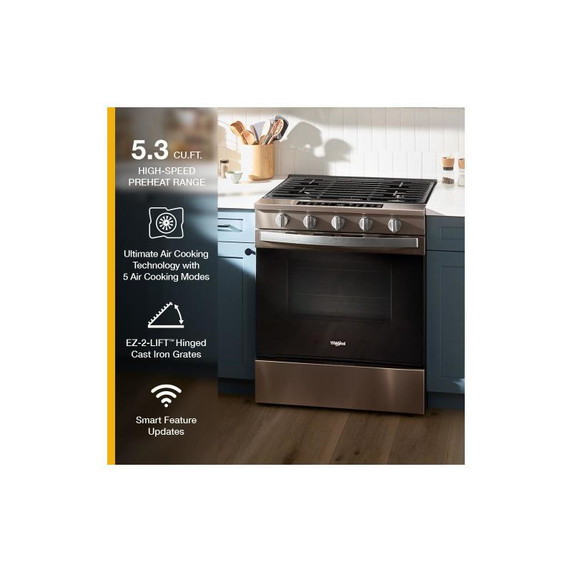

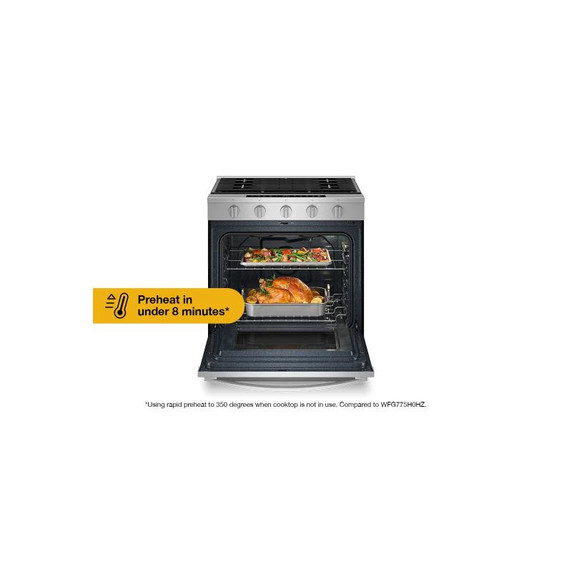

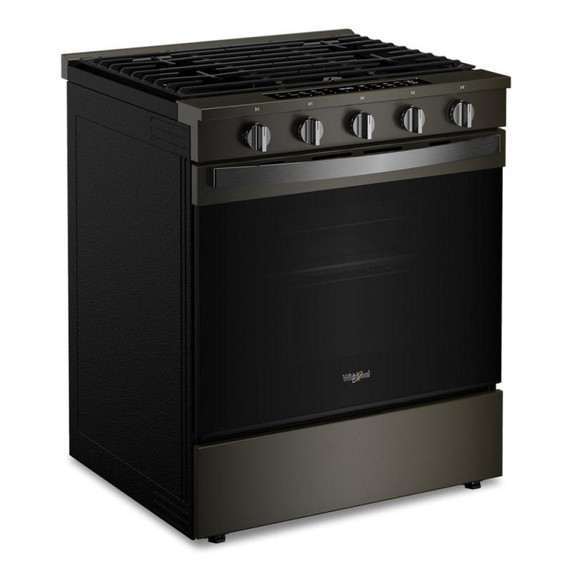

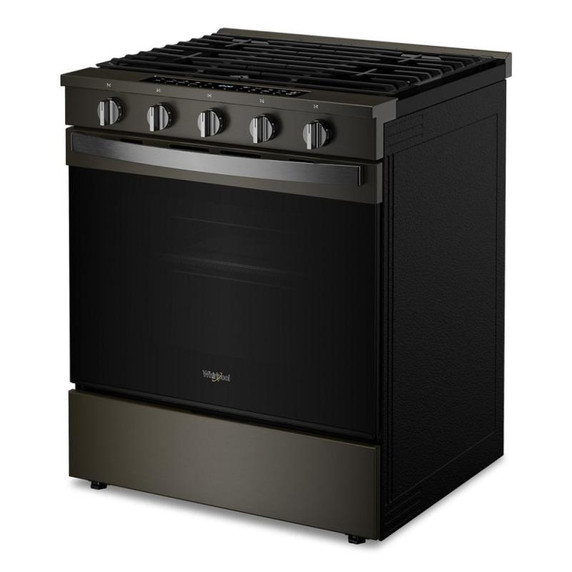

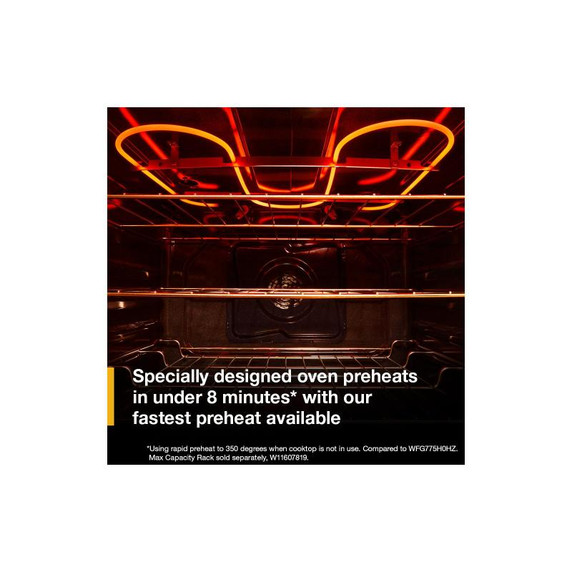

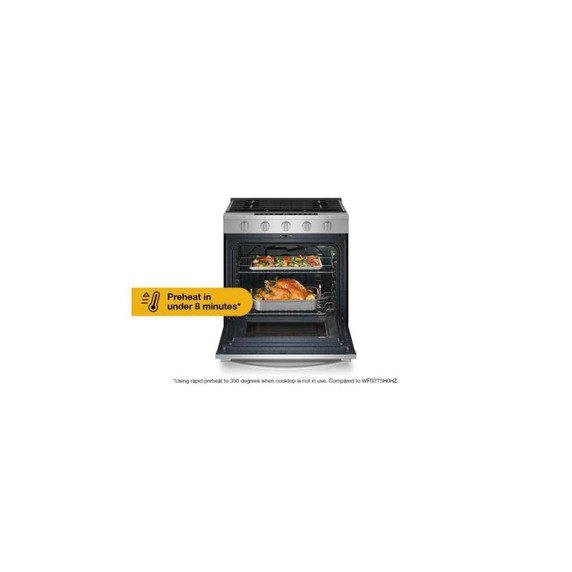

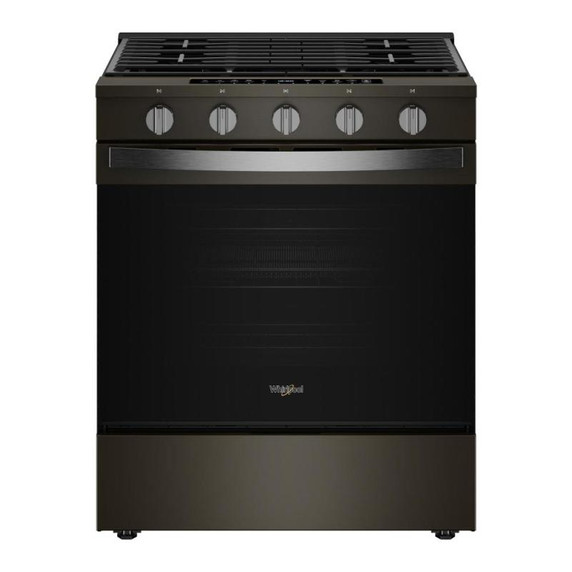

Whirlpool® 30-inch Smart Slide In Gas Range with Air Cooking Technology, No Preheat Air Fry, WipeClean™ Coating, Steam/Self Clean and High Speed Preheat WSGS7530RV
This product is available for pre-order only. Contact us for more information.
Whirlpool
Whirlpool® 30-inch Smart Slide In Gas Range with Air Cooking Technology, No Preheat Air Fry, WipeClean™ Coating, Steam/Self Clean and High Speed Preheat WSGS7530RV
Details

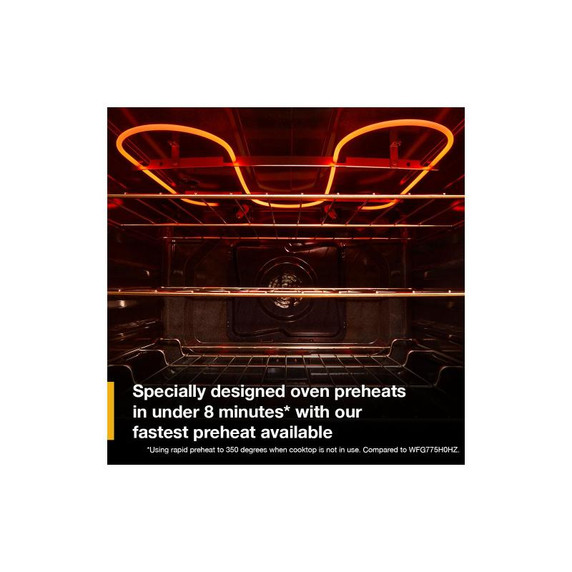

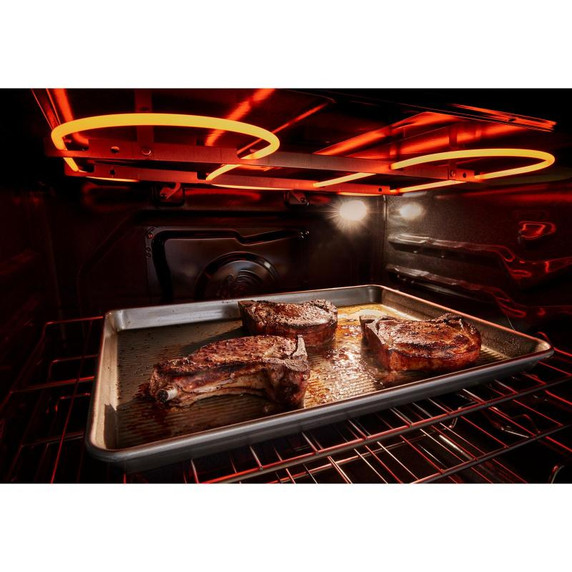

Broiler Element Power1300WElectricBroil
Cooktop Surface MaterialPorcelain Coated Steel
Hidden Bake ElementYes

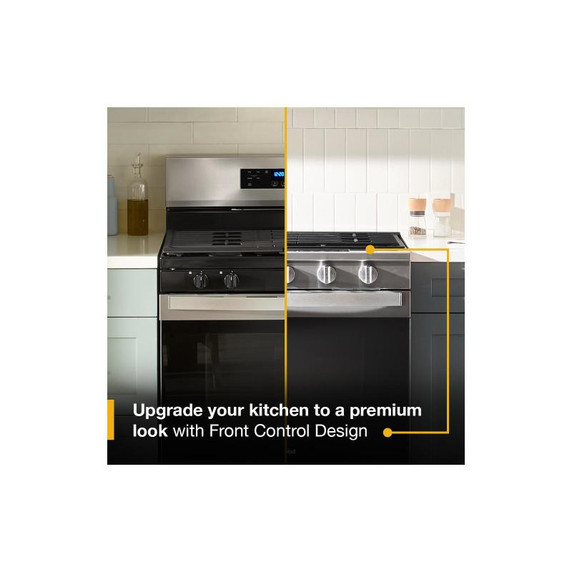

Oven Control LocationFront Control
Oven Cooking SystemTrue Convection
Oven Light Switch LocationOven Control
Oven Light TypeHalogen
Oven Cleaning TypeSteam Clean
Oven Interior Depth In Inches19.0
Number Of Rack Guides5
Number Of Oven Lights1

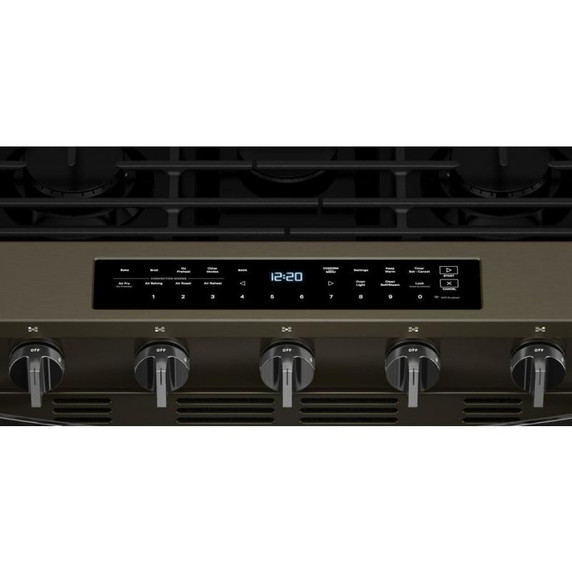

Oven Control TypeTap Touch
Broiler LocationTop Center

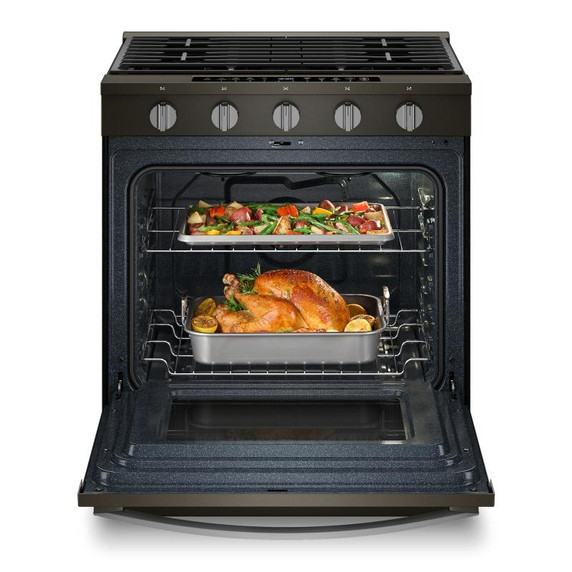

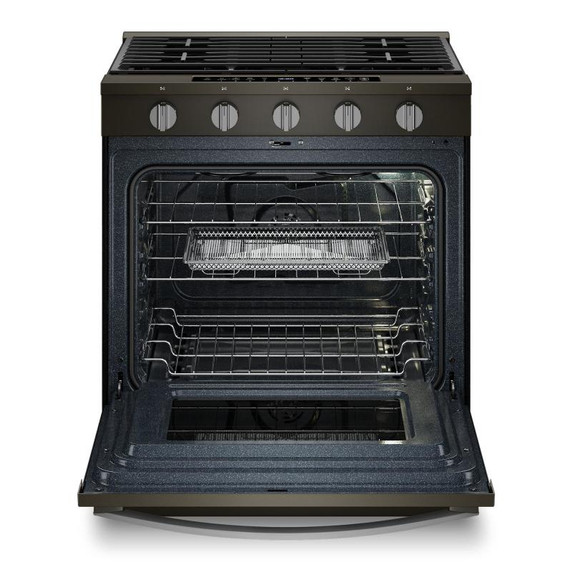

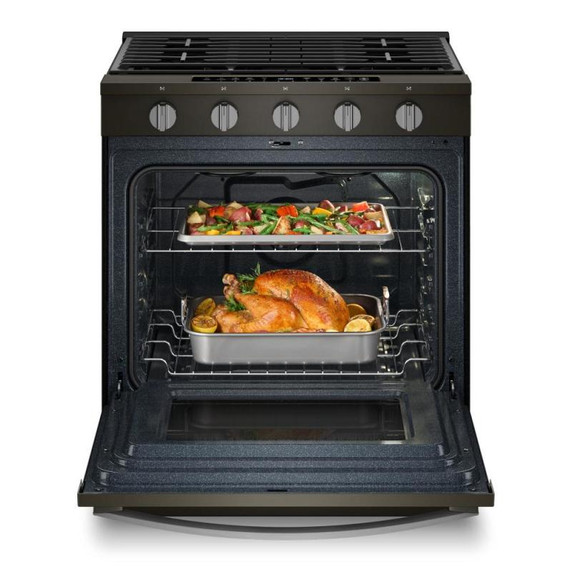

Number Of Oven Racks3
Bake Element Power16500BTU
Convection Element TypeTrue
Oven Rack Type2 Standard and 1 Max Capacity
Convection Element Power Watts925
Convection FunctionsBake; Broil
Oven Interior Width In Inches24.25
Oven Control Knob TypeN/A
Oven Ignition TypeSpark
Specifications
Country Of OriginUSA
Dishwasher SafeYes
Matte Finish Vs Satin FinishMatte Finish
Cast Iron Vs PorecelainCast Iron Grates
Extended Service Plan Parent
Product To Product Pairs
Optional AccessoriesW11692811, 4396096RB
Electrical
Volts120
Hz60
Amps15
Power Cord IncludedYes
Watts1
Certifications
ULYes
CULYes
ADA CompliantYes
Star K CertifiedStar K Certified

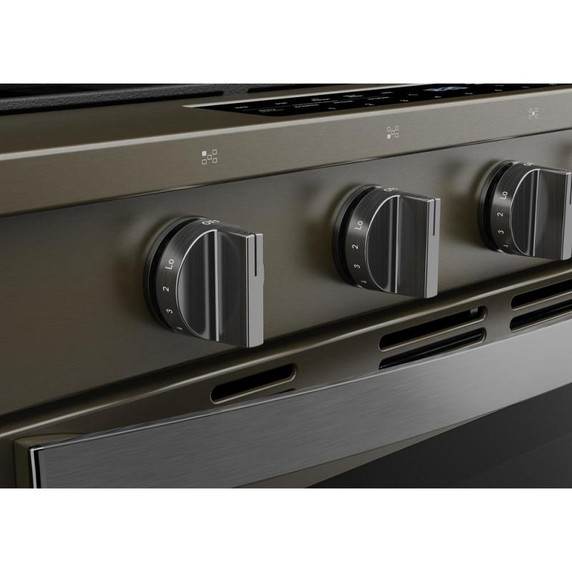

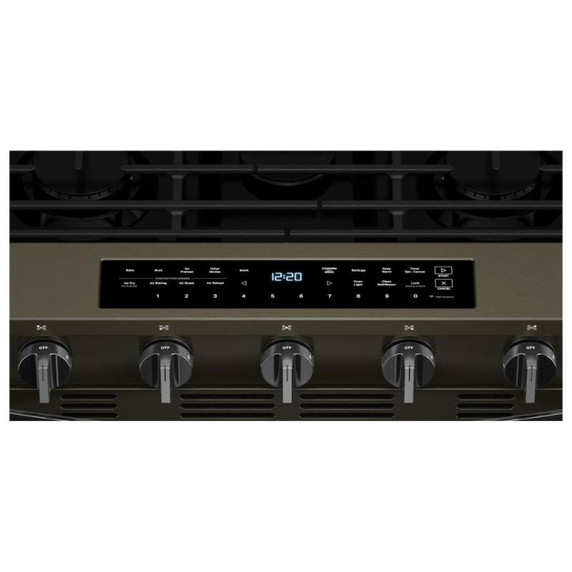

Controls
Knob TypeWeighted
Electronic Display TypeLED

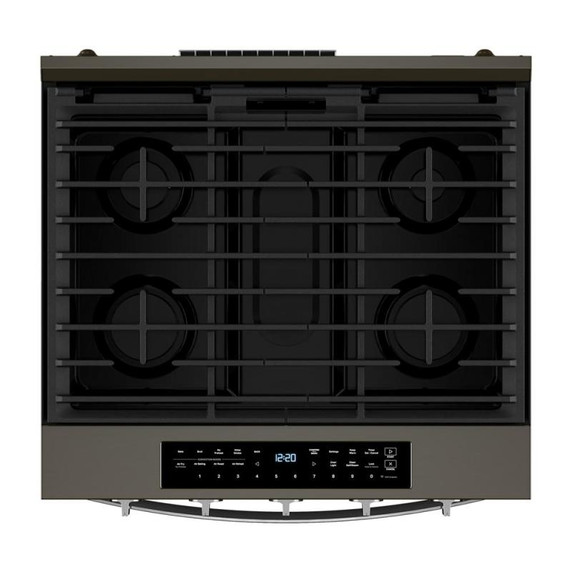

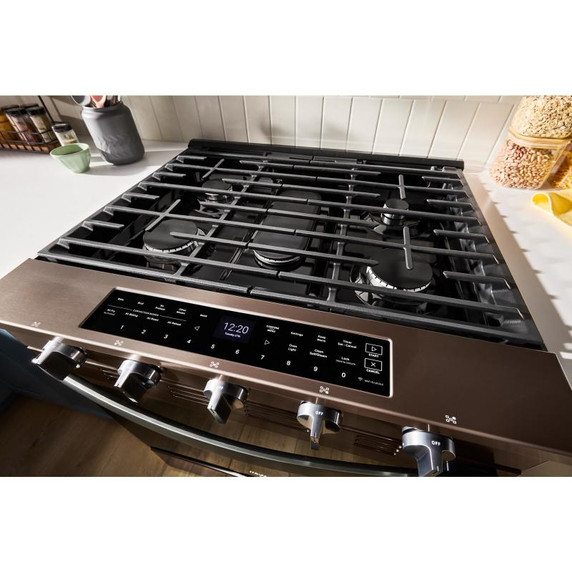

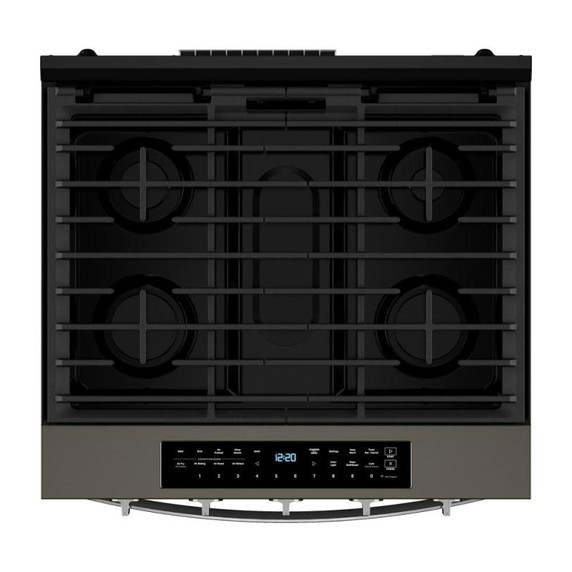

Cooktop Details

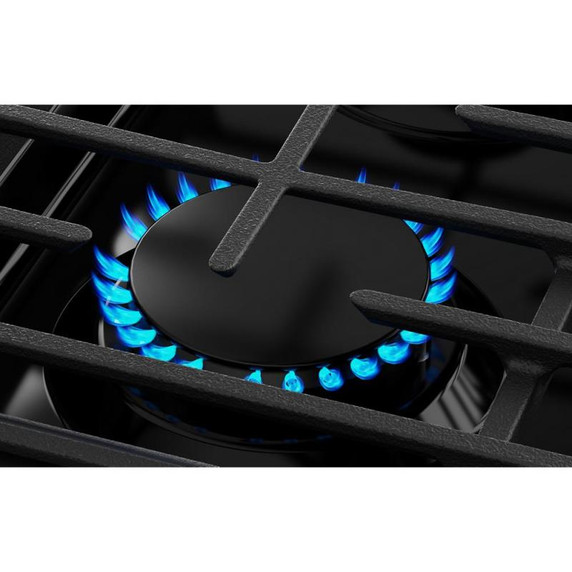

Cooktop Element StyleSealed Burners
Cooktop Control LocationFront

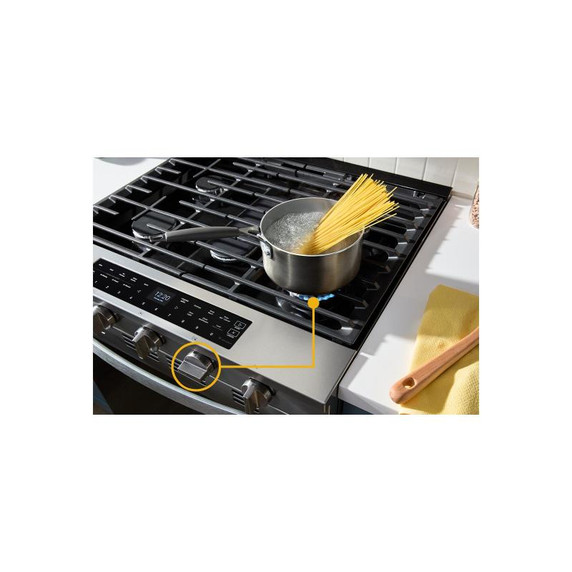

Cooktop Control TypeKnobs
Cooktop ConfigurationAll Burners
Left Rear Element Burner TypeStandard
Left Front Element Burner TypeSealed Burner
Number Of Cooking Element Burners5
Center Front Element Burner TypeStandard
Right Front Element Burner TypeSealed Burner
Auto Re IgnitionNo
Number Of Grates2
Left Front Element Burner Power18000BTU
Right Rear Element Burner TypeSimmer
Right Rear Element Burner Power5000BTU
Ignition TypeDirect Spark Ignition
Left Rear Element Burner Power10000BTU
Center Front Element Burner Power12000BTU
Right Front Element Burner Power18000BTU

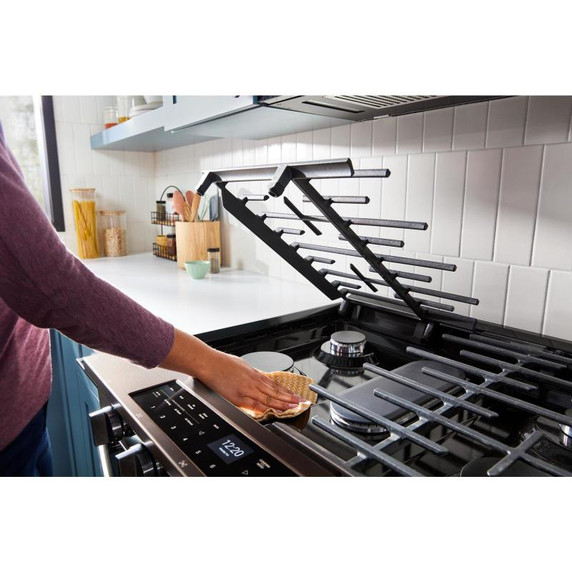

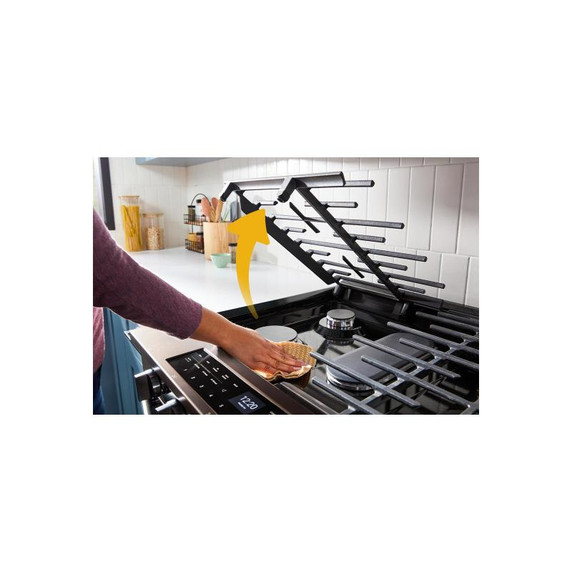

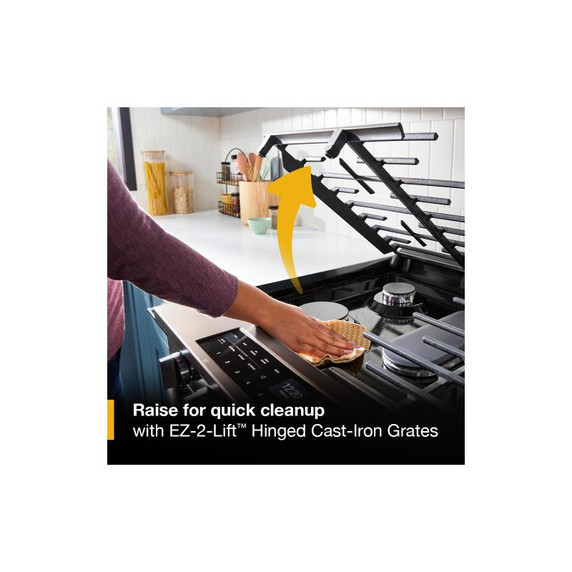

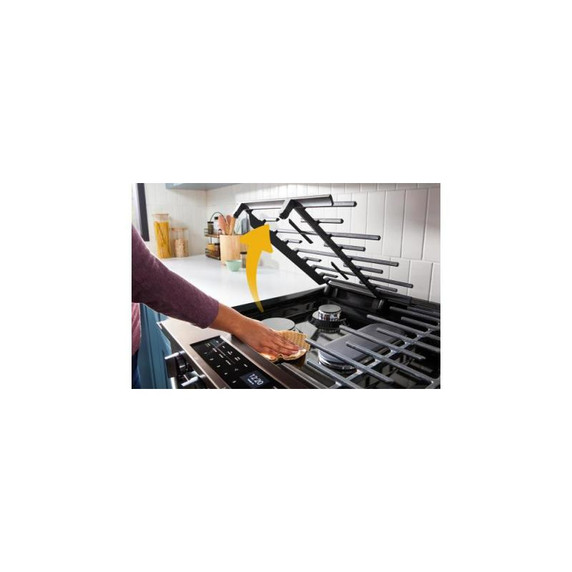

Grate DetailsCast Iron Grates; Continuous with Hinge; Dishwasher Safe; Matte Finish
Features
Hot Surface Indicator LightNo
LP ConvertibleYes
Natural Gas ConvertibleYes
Automatic Convection Conversion Temperature AdjustNo
Power Outage CompatibleYes
Heating Element On Indicator LightNo
Total Gas Btus Oven S16,500

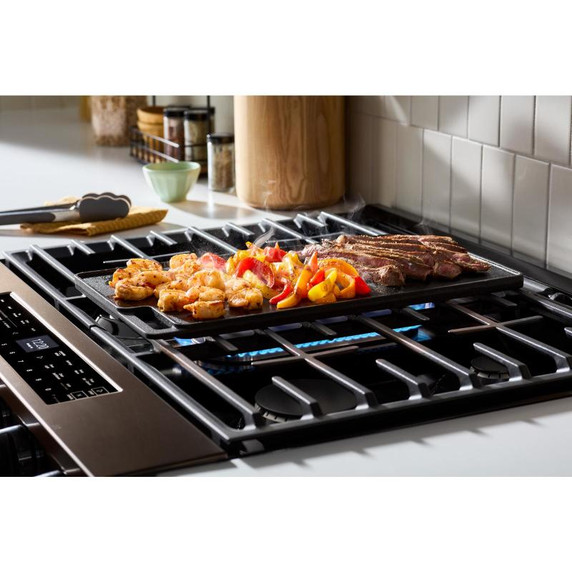

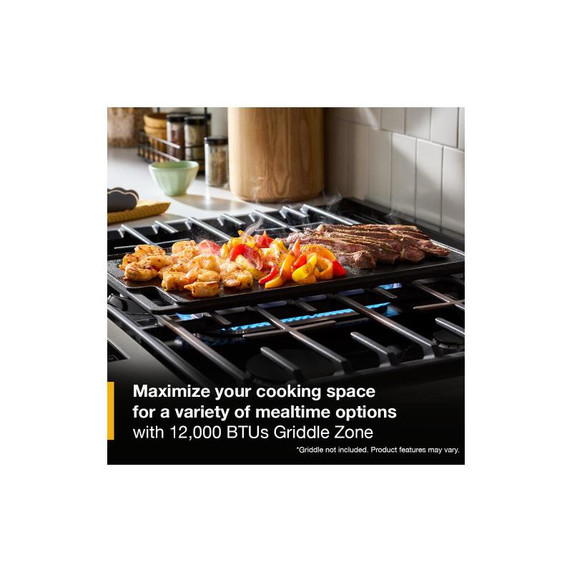

GriddleNo, Optional Accessory
Total Gas Btus Cooktop63,000
Configuration
Oven ConfigurationSingle Oven
Range ConfigurationSlide-In
Exterior
Door RemovableYes
Drawer TypeStorage Drawer
Description
Range TypeSlide-in
Configuration and Overview
Fuel TypeGas
Compatibility
Works WithAmazon Alexa; Android; Google Assistant; Nest; iOS

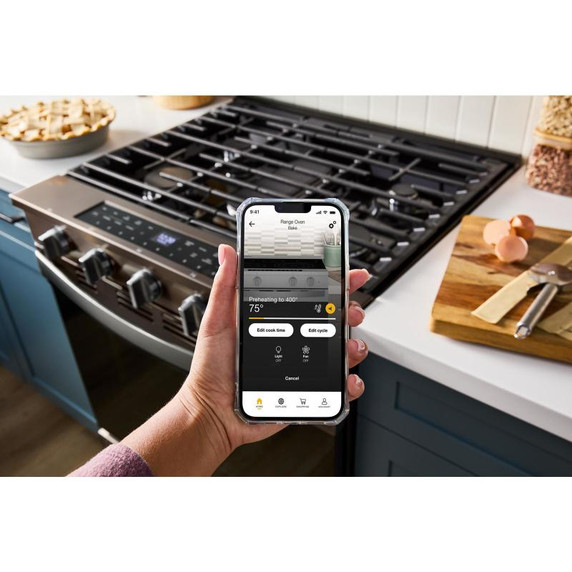

ConnectivityApp; Bluetooth; Remote Access; Voice Controlled; WiFi
Carton Depth31.0"
Carton Height43.0"
Carton Width32.0"
Depth Closed Excluding Handles27.88"
Depth Closed Including Handles29.18"
Depth With Door Open 90 Degree48.5"
Gross Weight196.0 lbs.
Cutout Depth24.0"
Cutout Height36.0"
Cutout Width30.0"

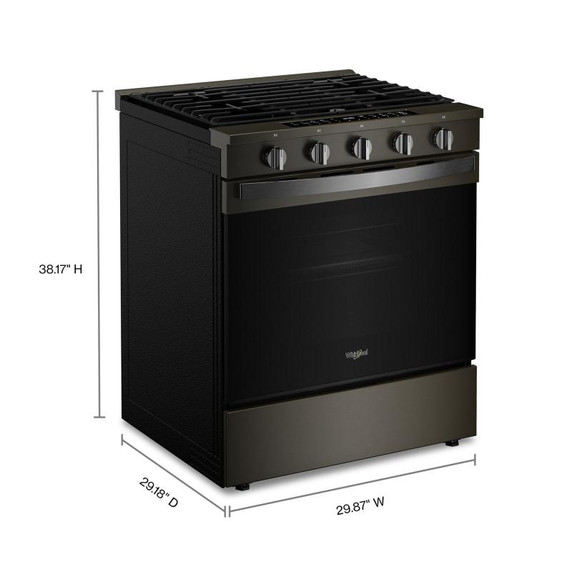

Depth29.18"
Height38.17"
Maximum Height38.17"
Minimum Height36.67"
Width29.87"
Capacity FT3 (cubic feet)5.0
