FlexHeat™ Triple Radiant ElementGet three elements in one with a 6" inner ring that's great for smaller pots and pans, and 9" and 12" outer rings that make room for larger cookware.

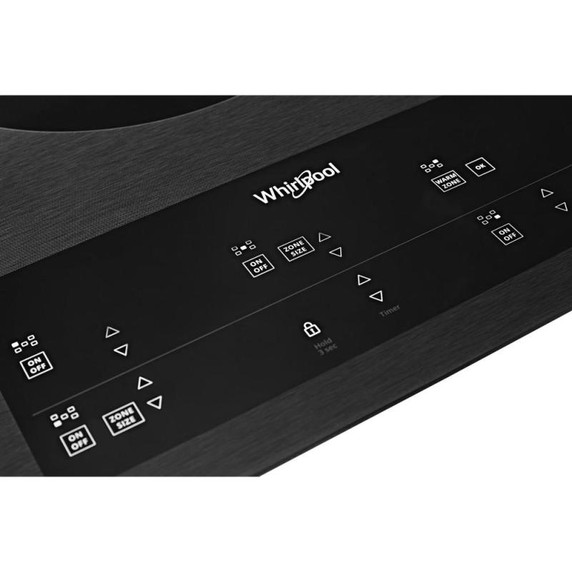

Tap Touch ControlsClean the controls as easily as you use them.
Control Lock ModeDisable the control panel to avoid unintended use.

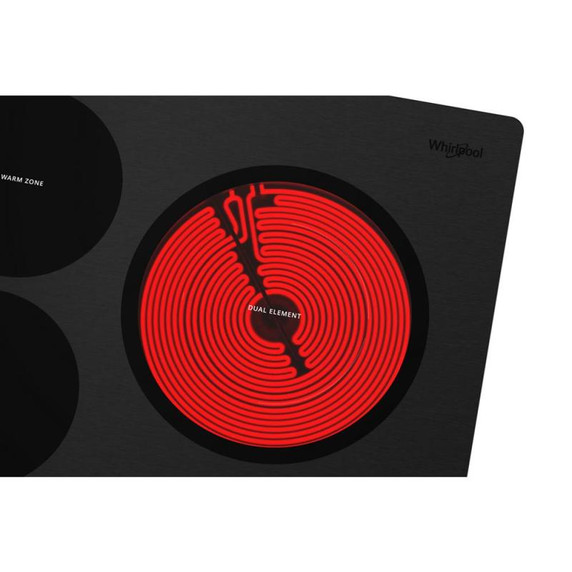

FlexHeat™ Dual Radiant ElementGet two elements in one with a 6" inner ring that's great for smaller pots and pans and a 10" expandable outer ring that makes room for larger cookware.
Easy-Wipe Ceramic Glass CooktopWiping up spills is simple with the easy-to-clean cooktop.
Warm Zone ElementKeep food warm while you're finishing the rest of the meal using this low-powered element.
Kitchen TimerKeep track of cook times with an easy-to-clean Kitchen Timer that’s integrated into the Tap Touch Controls.

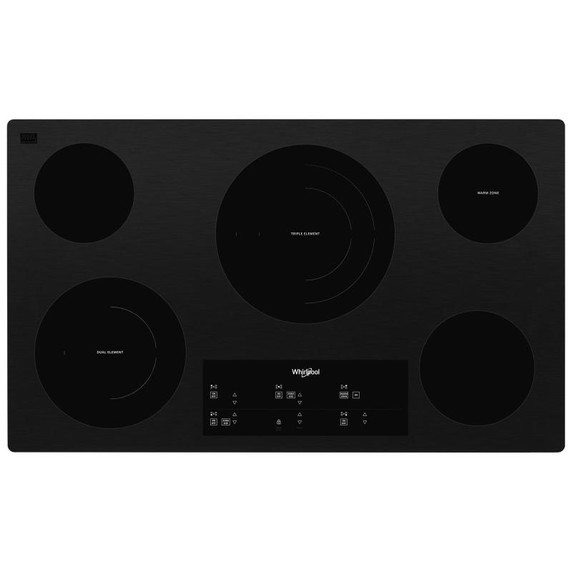

5 Element CooktopCook more of your family's favourites and enjoy added versatility with a fifth element.
30 & 40 Amp InstallationProperly install with either a 30 or 40 amp hookup, so there's no need to rewire.
Hot Surface Indicator LightSee when the cooktop's still hot to the touch, even after it's been turned off, with a light that lets you know.
Wall Oven CompatibleInstall this cooktop in a counter above select Whirlpool® Single Wall Ovens or on its own for more flexibility
8" Extra ElementCook small dishes like sides and sauces on the 8" extra element.
6" Extra ElementCook small dishes like sides and sauces on the 6" extra element.
ADA compliantThis cooktop meets the Standards for Accessible Design specified by the Americans with Disabilities Act to provide equal access to all.
Country Of OriginUSA
Extended Service Plan ParentEW05IW4Y, EW05IW2Y, EW05IW1Y
Product To Product PairsWVW53UC6HV, UVL6036JSS
Hz60
Volts240
Power Cord IncludedNo
Amps40
208v CompatibleYes
ULYes
ADA CompliantYes
Left Front Element Burner TypeDual
Cooktop ConfigurationAll Burners
Cooktop Element StyleCeran
Left Rear Element Burner Power1200W
Left Rear Element Burner Size6in.
Left Rear Element Burner TypeStandard
Right Rear Element Burner Size6in.
Right Rear Element Burner TypeStandard
Number Of Cooking Element Burners5
Right Front Element Burner TypeStandard
Right Front Element Burner Size8in.
Left Front Element Burner Power3000W/1900W
Left Front Element Burner Size10in./6in.
Center Rear Element Burner Power3000/2200/1100W
Center Rear Element Burner Size12in./9in./6in.
Center Rear Element Burner TypeTriple
Right Front Element Burner Power1800W
Right Rear Element Burner Power100W
Heating Element On Indicator LightYes
GriddleN/A
Hot Surface Indicator LightYes
Power Outage CompatibleNo
LP ConvertibleNo
Automatic Pan DetectionNo
Downdraft VentNo
Installs Over Built In OvenYes
Power BoostNo
Digital DisplayYes
Automatic Pan Size AdjustmentNo
Fuel TypeElectric
Size In36
Cooktop TypeTraditional
Combinations With OvenWOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
Control TypeManual
Control LocationFront

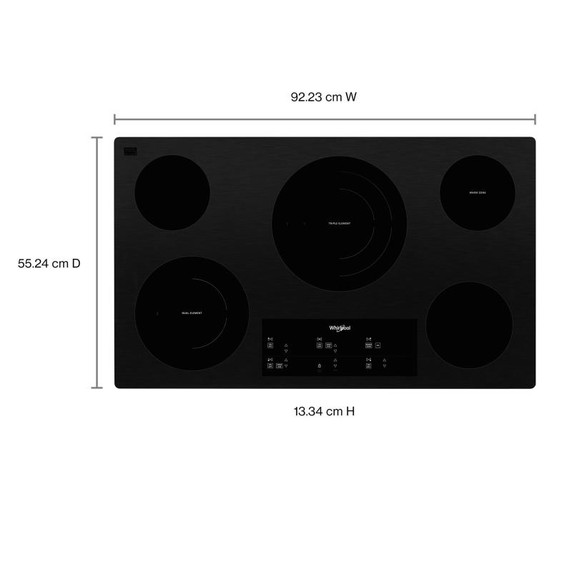

Depth22.81"
Height5.25"
Net Weight44.0 lbs.
Width36.31"
Carton Depth Inch25.0
Carton Height Inch9.25
Carton Width Inch40.75
